MATERIAL
Laser-Cut, Powder-Coated Steel

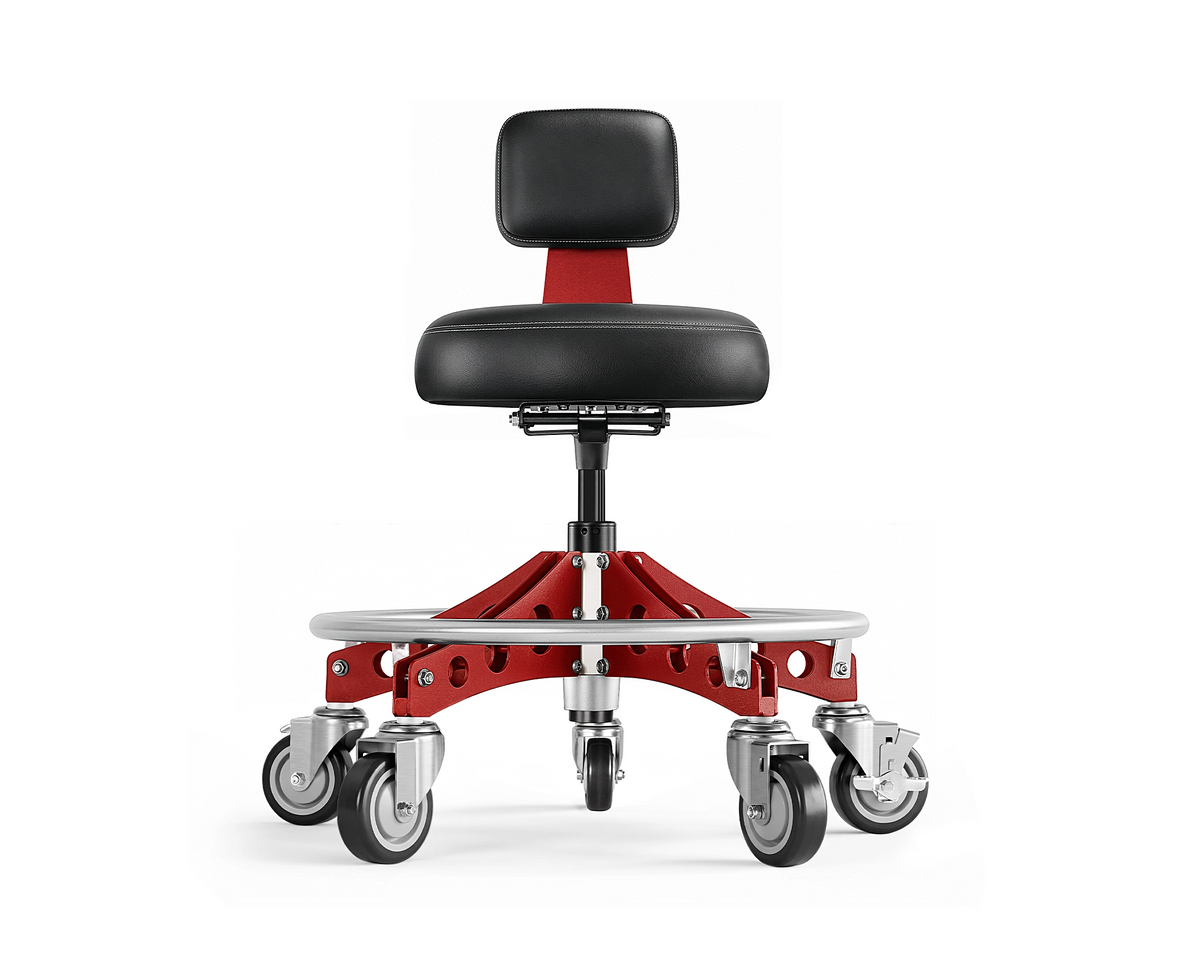

RYFA GT SHOP STOOL
FOR DIY, AUTO, HOME & WORKSHOP TASKS
SKU: 5000073
US $385.00
AT A GLANCE
| | CAPACITY |
| HEIGHT & ADJUSTMENT | SEAT |
| BACKREST | FOOTREST |
| COLOR | WARRANTY |

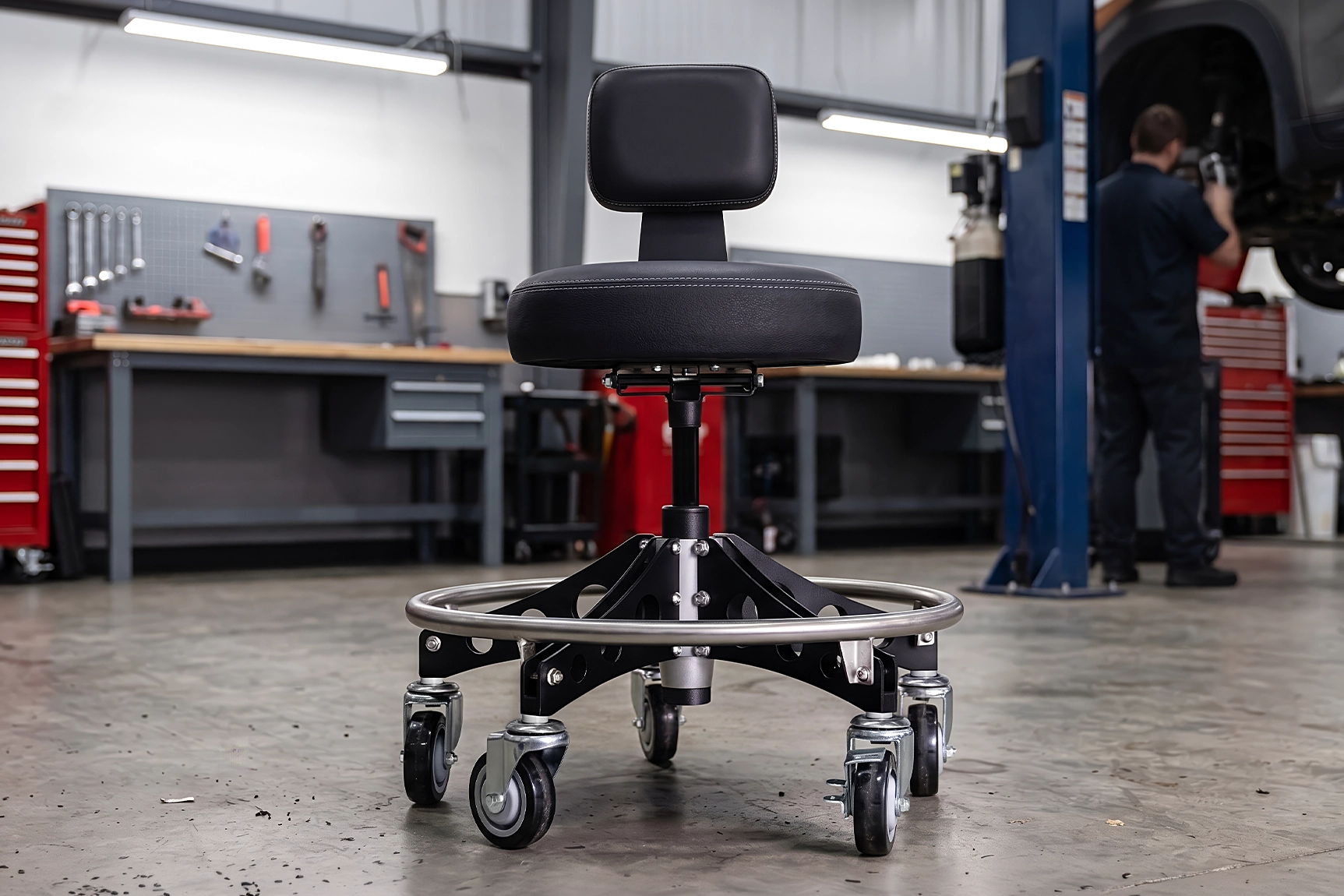

BUILT TO ADJUST AS THE JOB CHANGES.

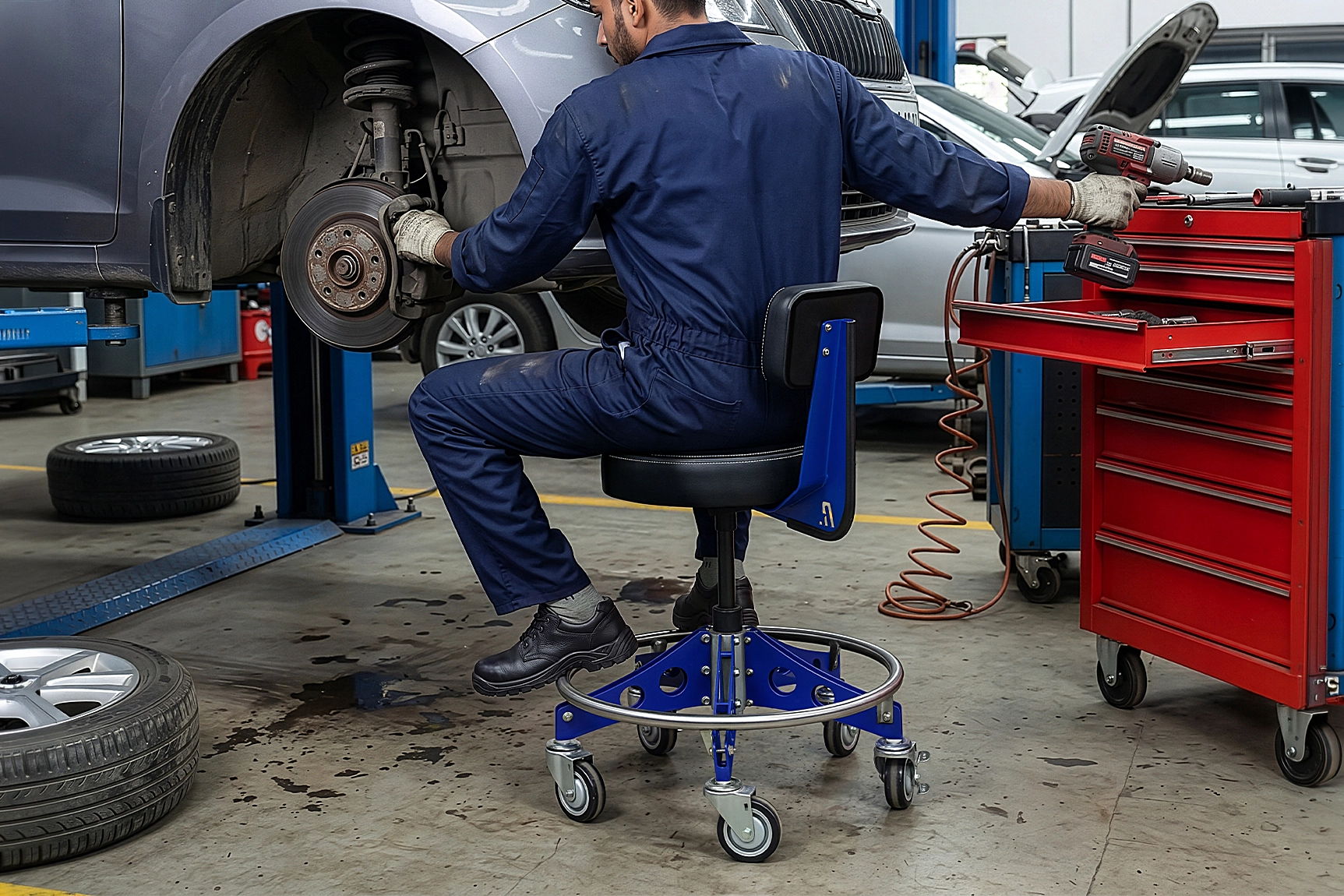

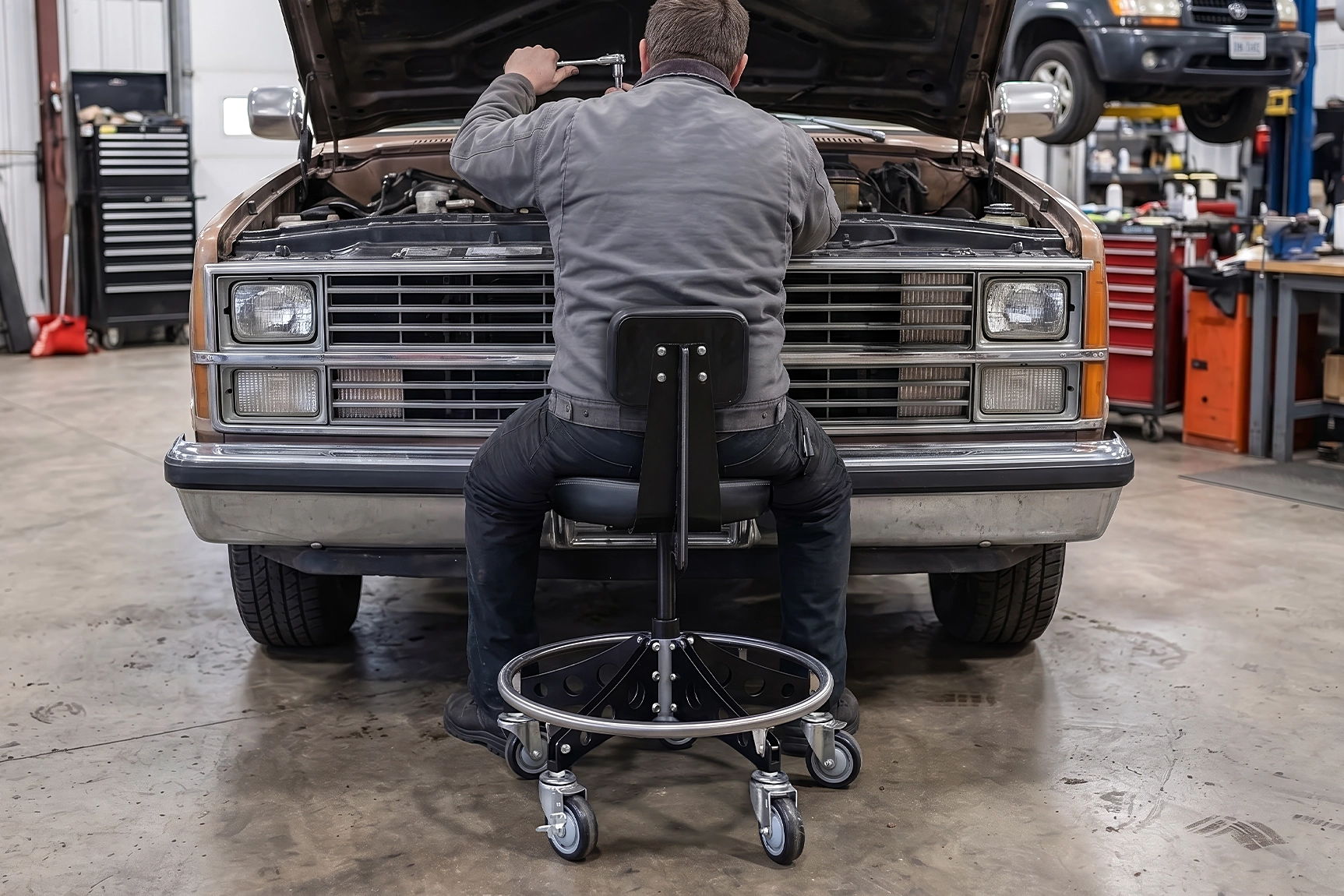

Set it lower for brake work, wheels, and lower panels. Raise it for assembly, repairs, and bench work. GT adjusts from 17 to 22.5 " with a one-lever gas lift, while a cushioned backrest, full-circle footrest, and five industrial casters keep you supported and mobile through the job.

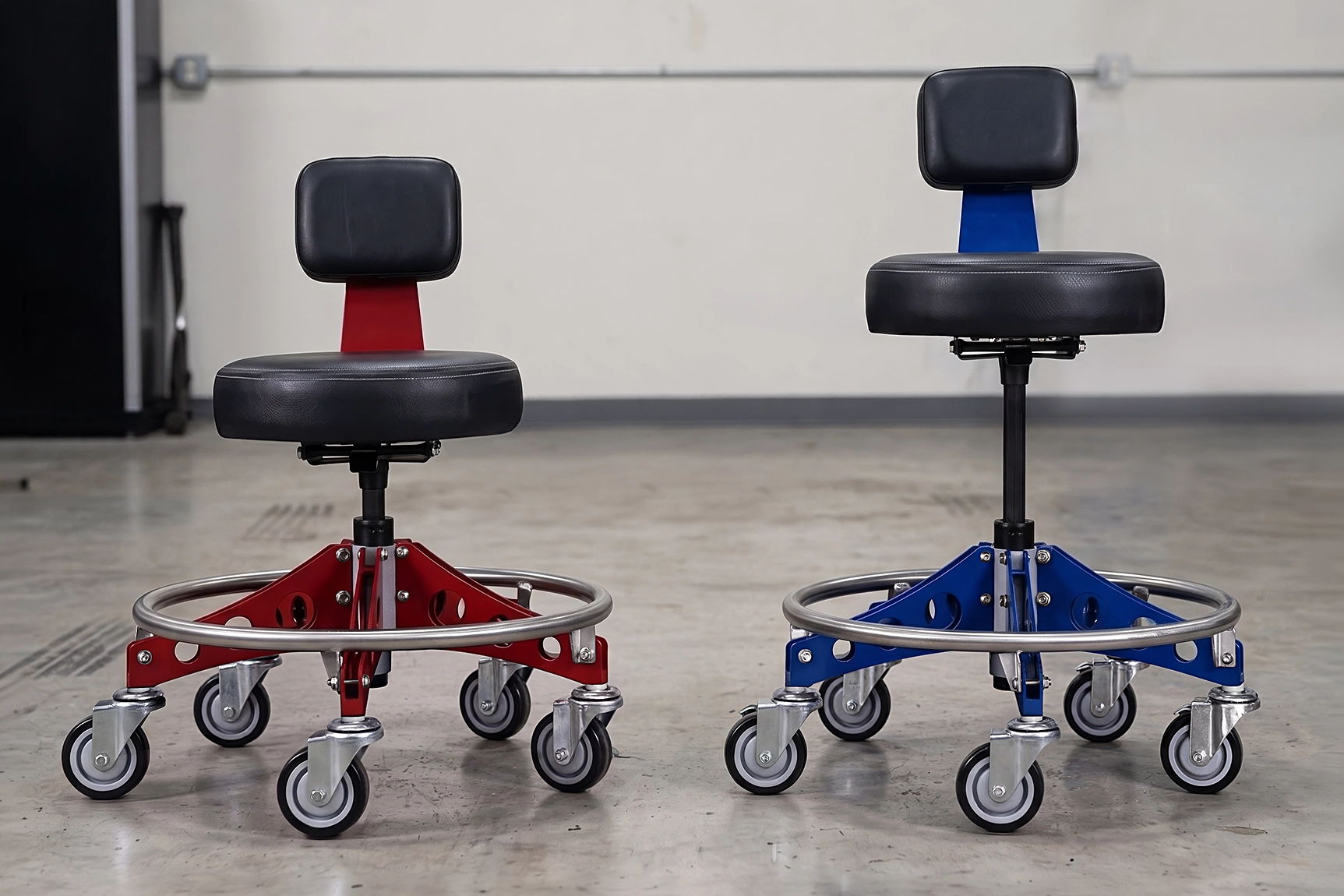

Available in Black, Blue, and Red.

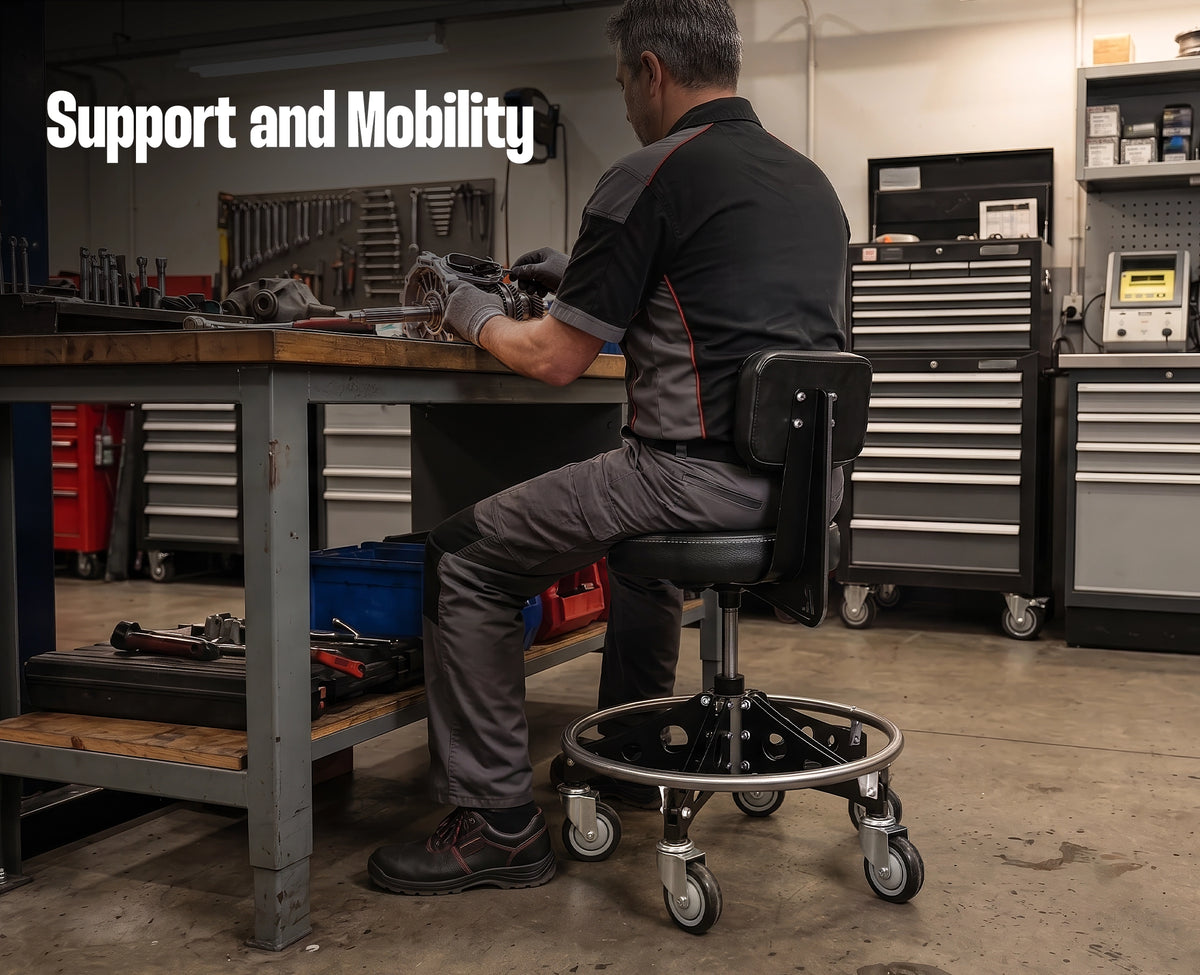

SUPPORT AND MOBILITY FROM
WHEEL WORK TO BENCH WORK.

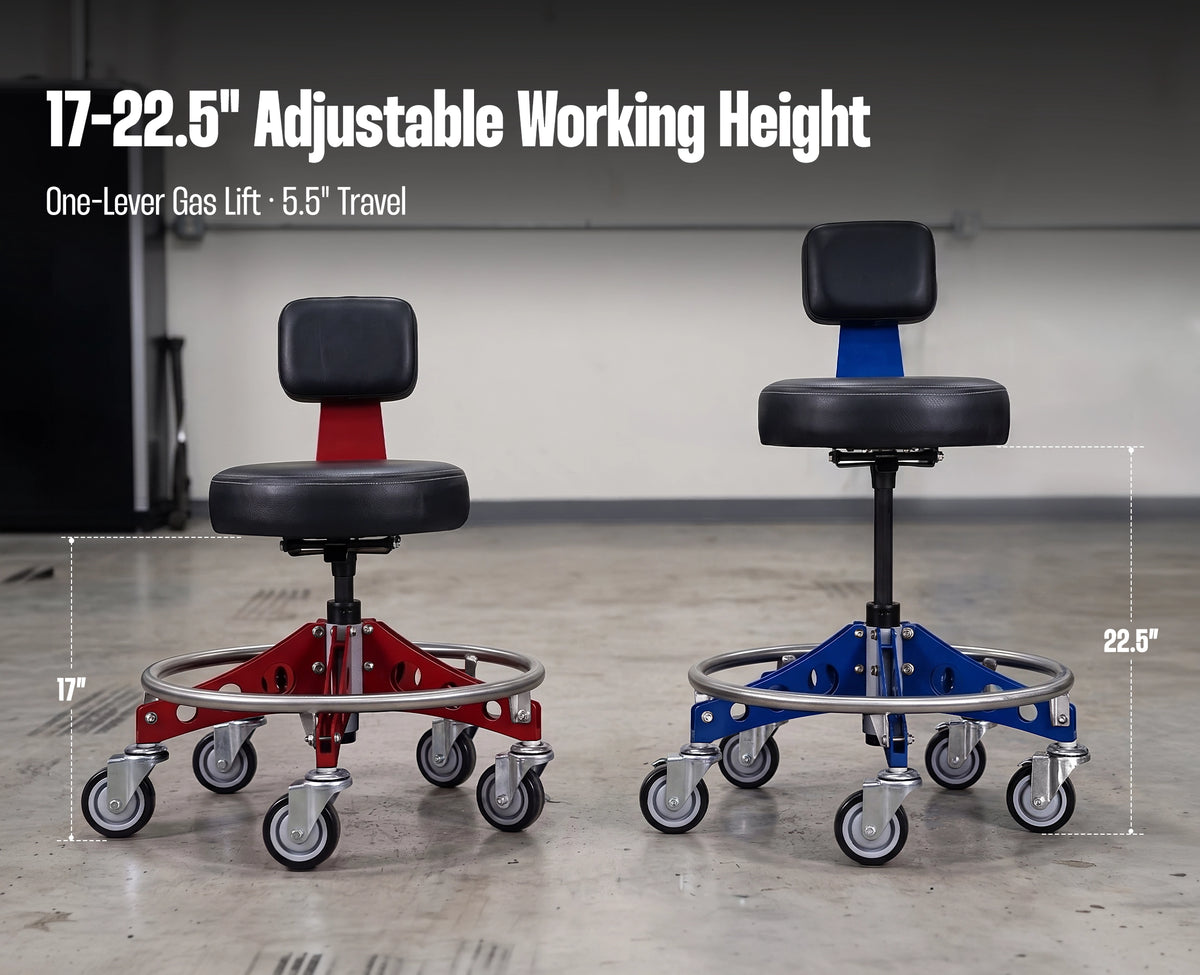

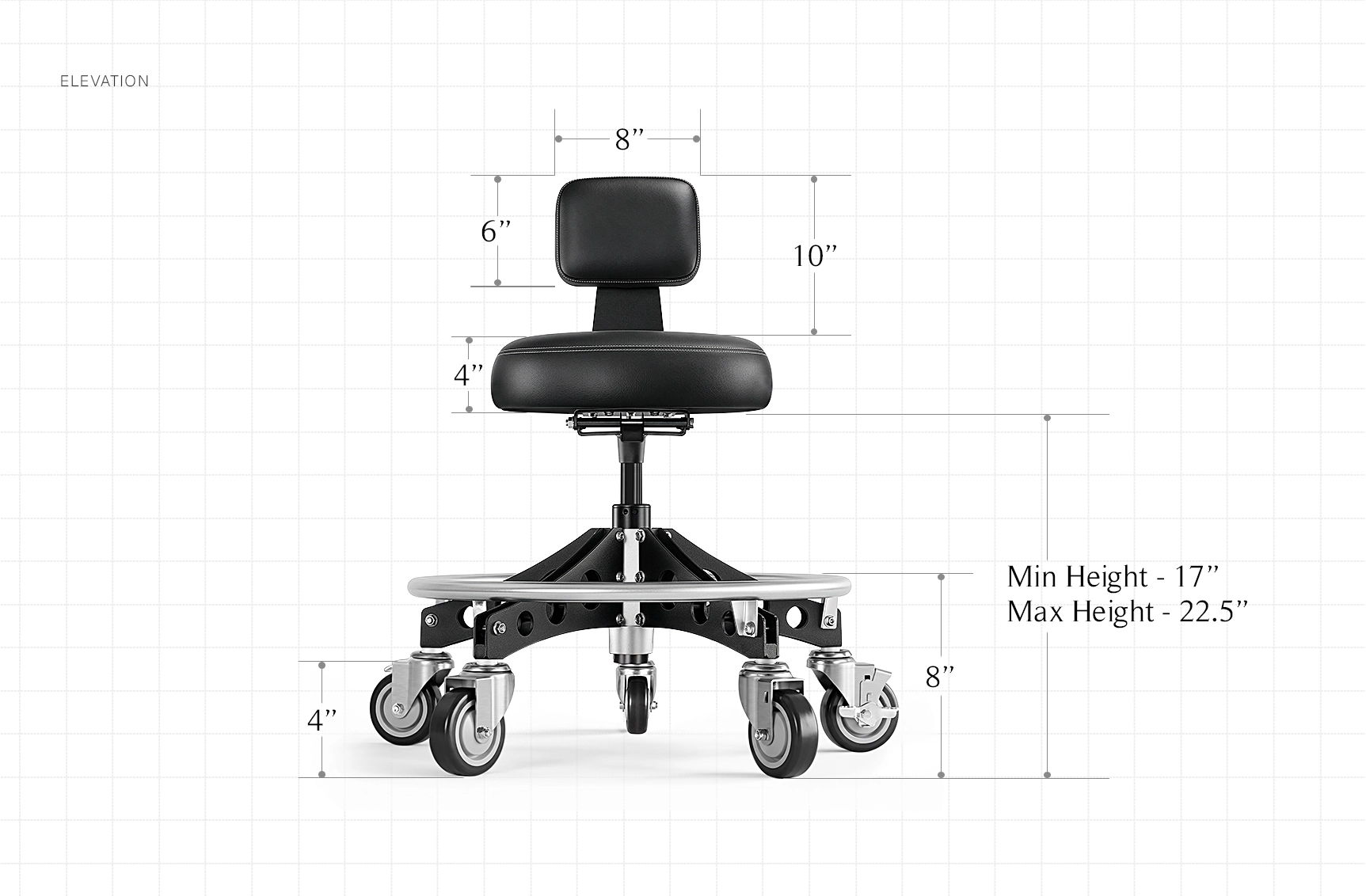

17-22.5" adjustable working height
Use one lever to move through 5.5 "of gas-lift adjustment. Set the seat lower for wheels and lower panels, or raise it for assembly and bench work. Once set, the stool holds the height you choose.

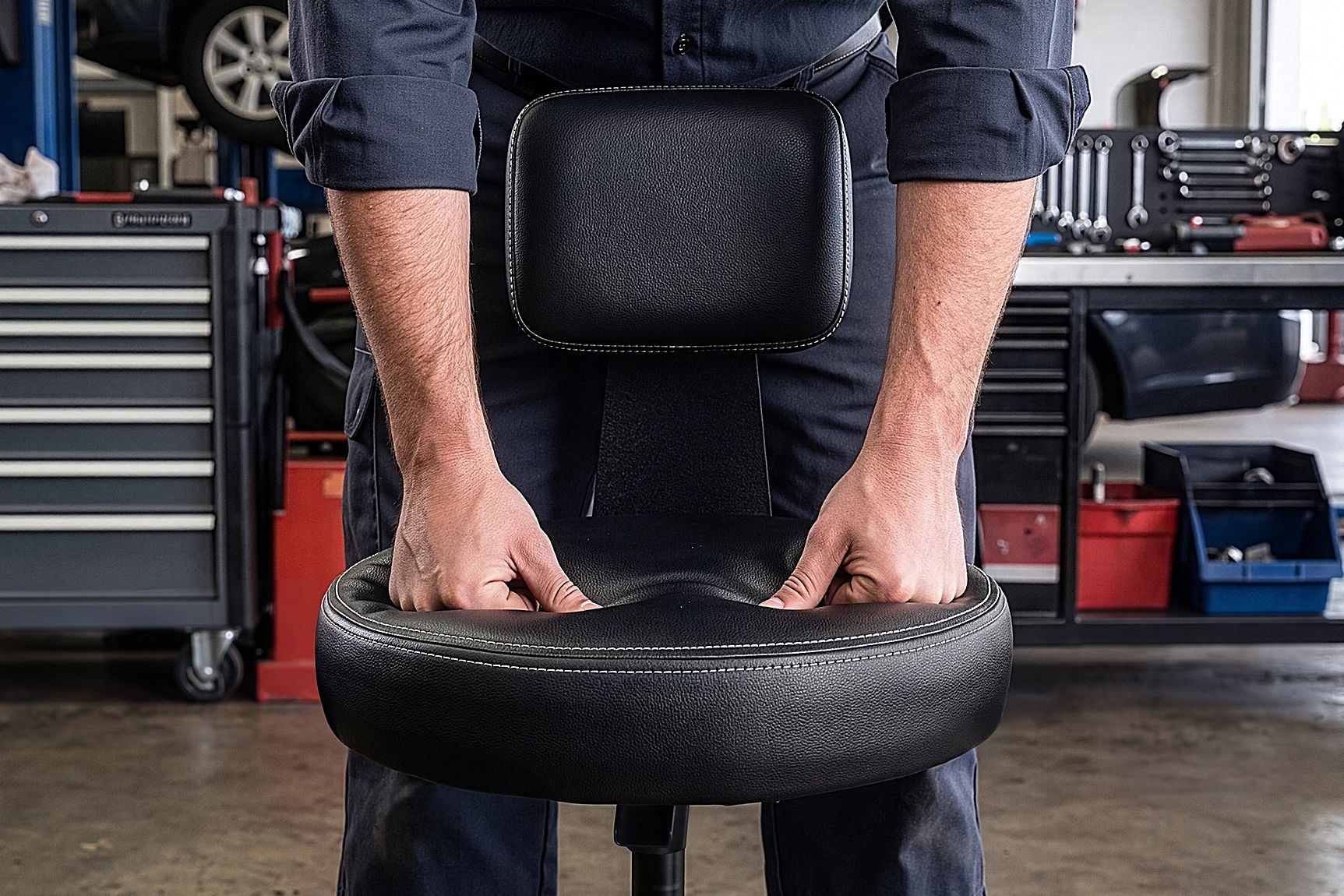

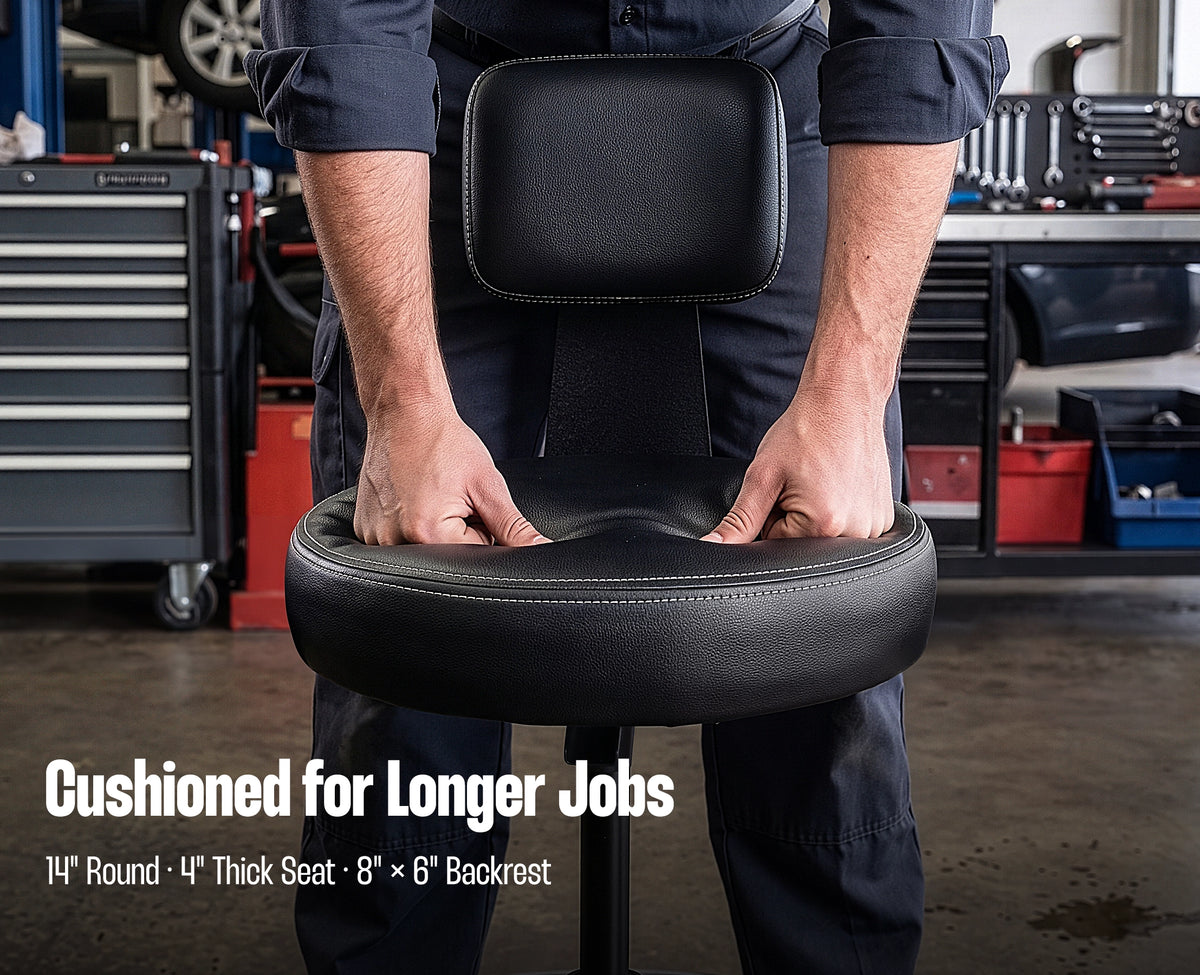

Cushioned for longer jobs
A 14 "round, 4 "thick cushioned seat and included 8 × 6 " backrest make longer seated tasks more comfortable. The vinyl upholstery wipes clean after ordinary shop dust and grime.

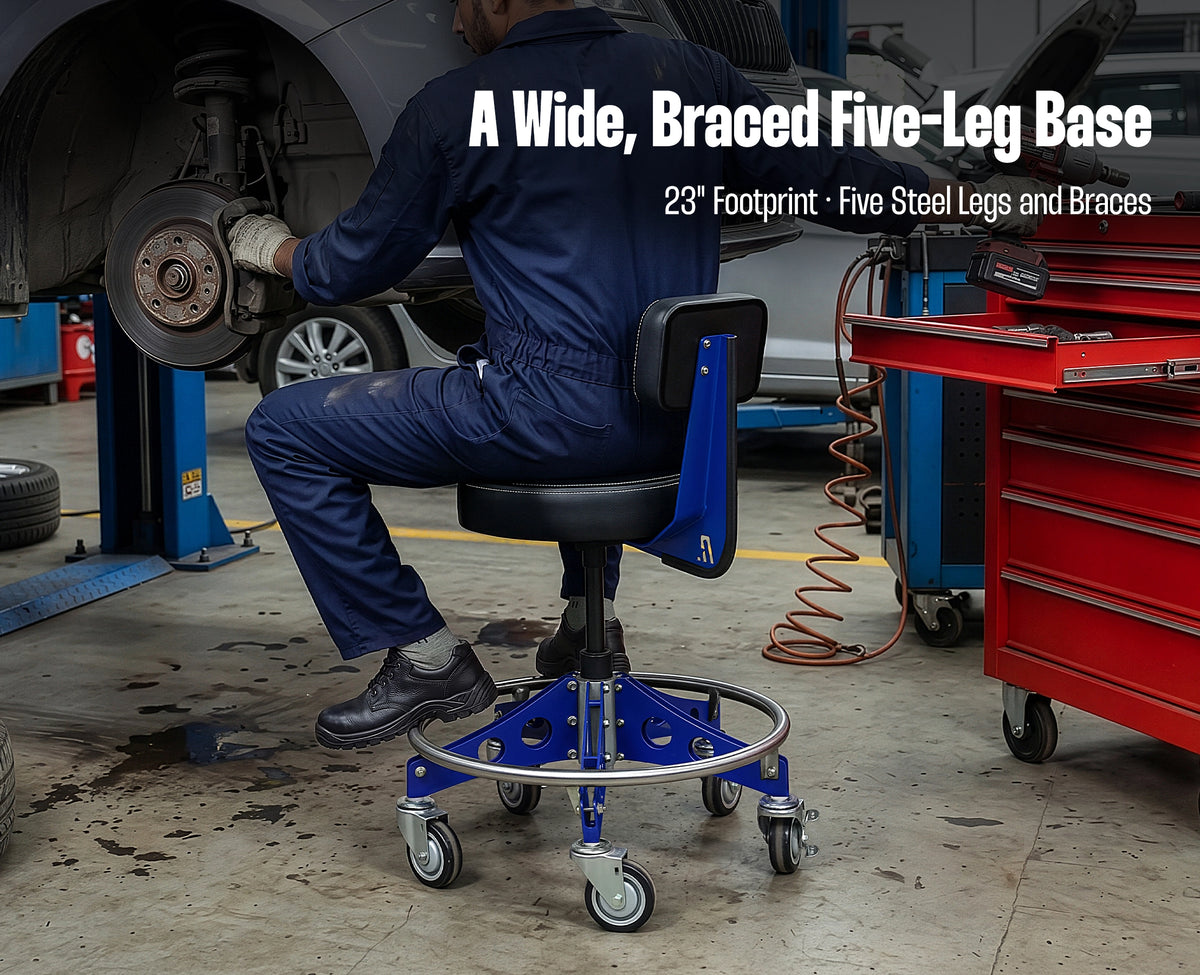

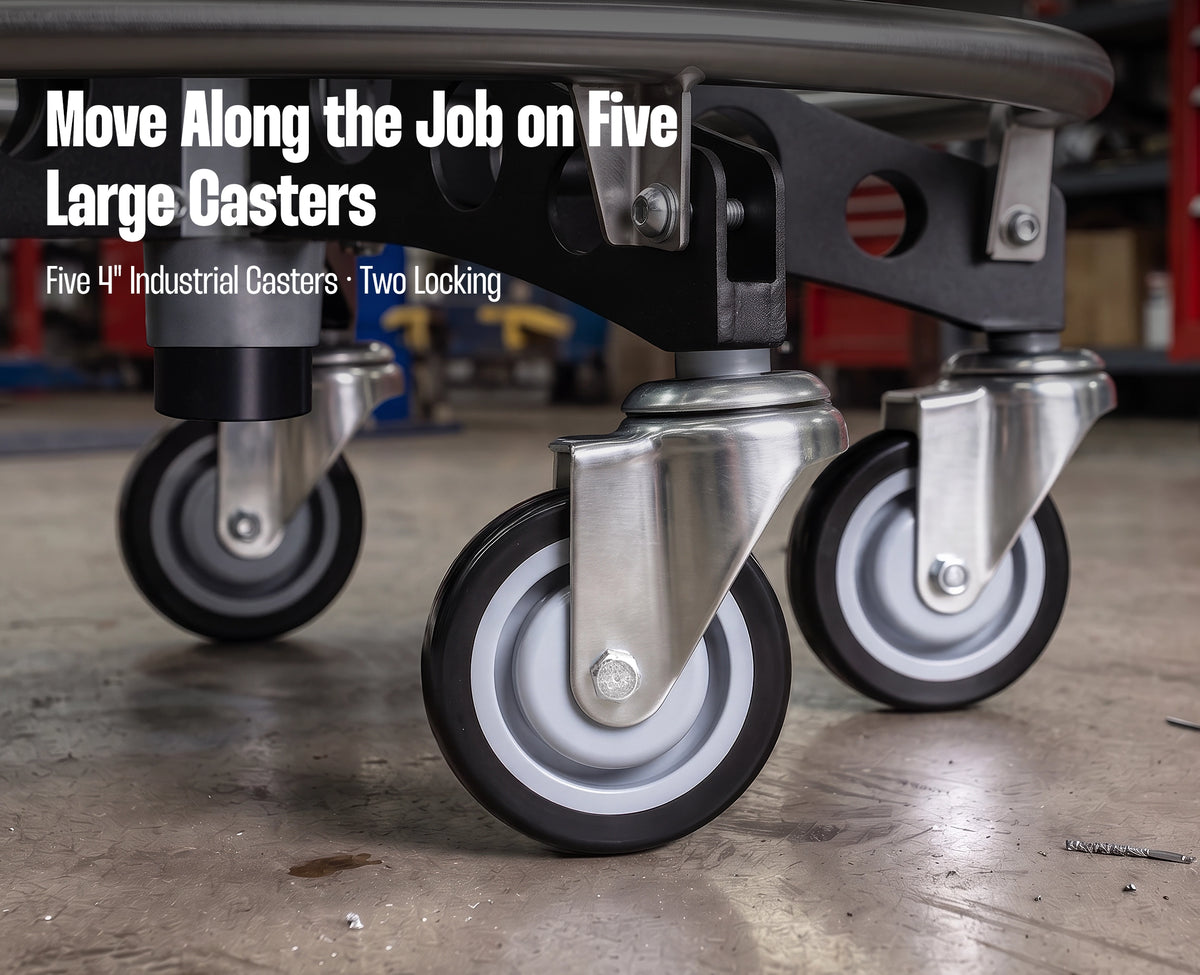

A wide, braced five-leg base on five 4″ casters

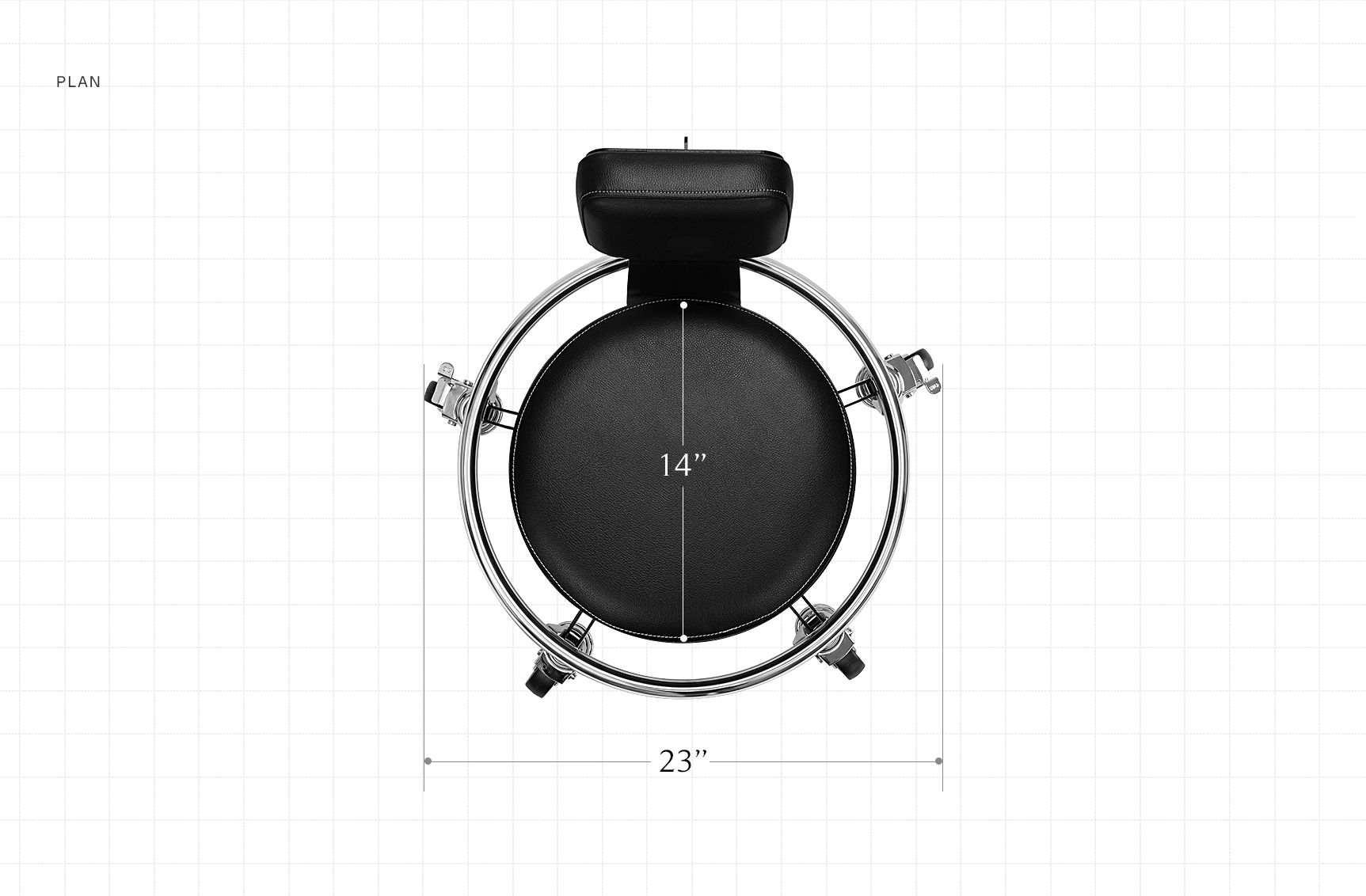

Five steel legs and five braces form a 23" footprint around the center column, giving the stool a broad, well-supported stance while you work. Each leg carries a 4"industrial caster — larger than the wheels on common shop stools, so the stool rolls across floor seams and working shop floors instead of catching on them. Two locking casters help hold the stool in place when needed.

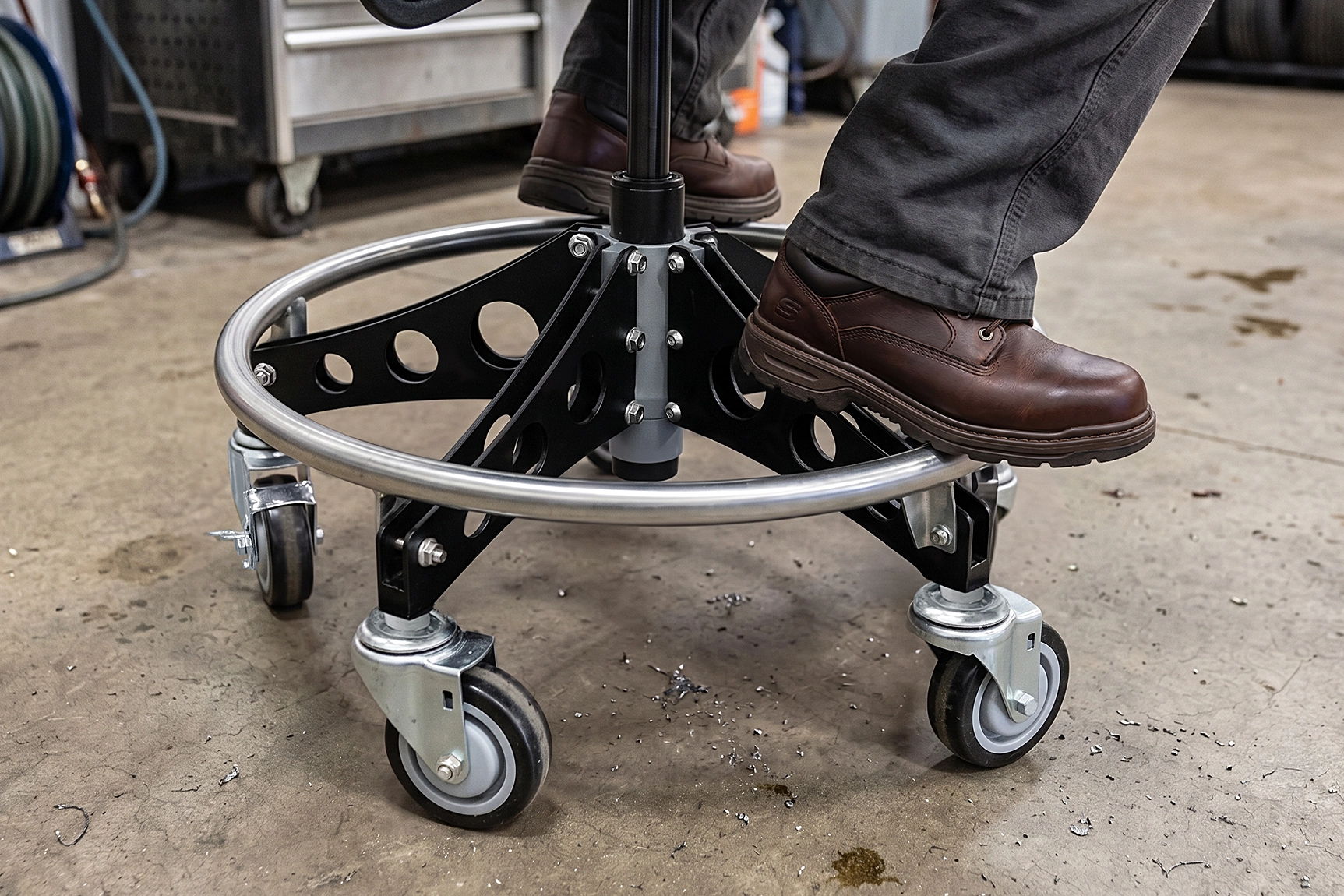

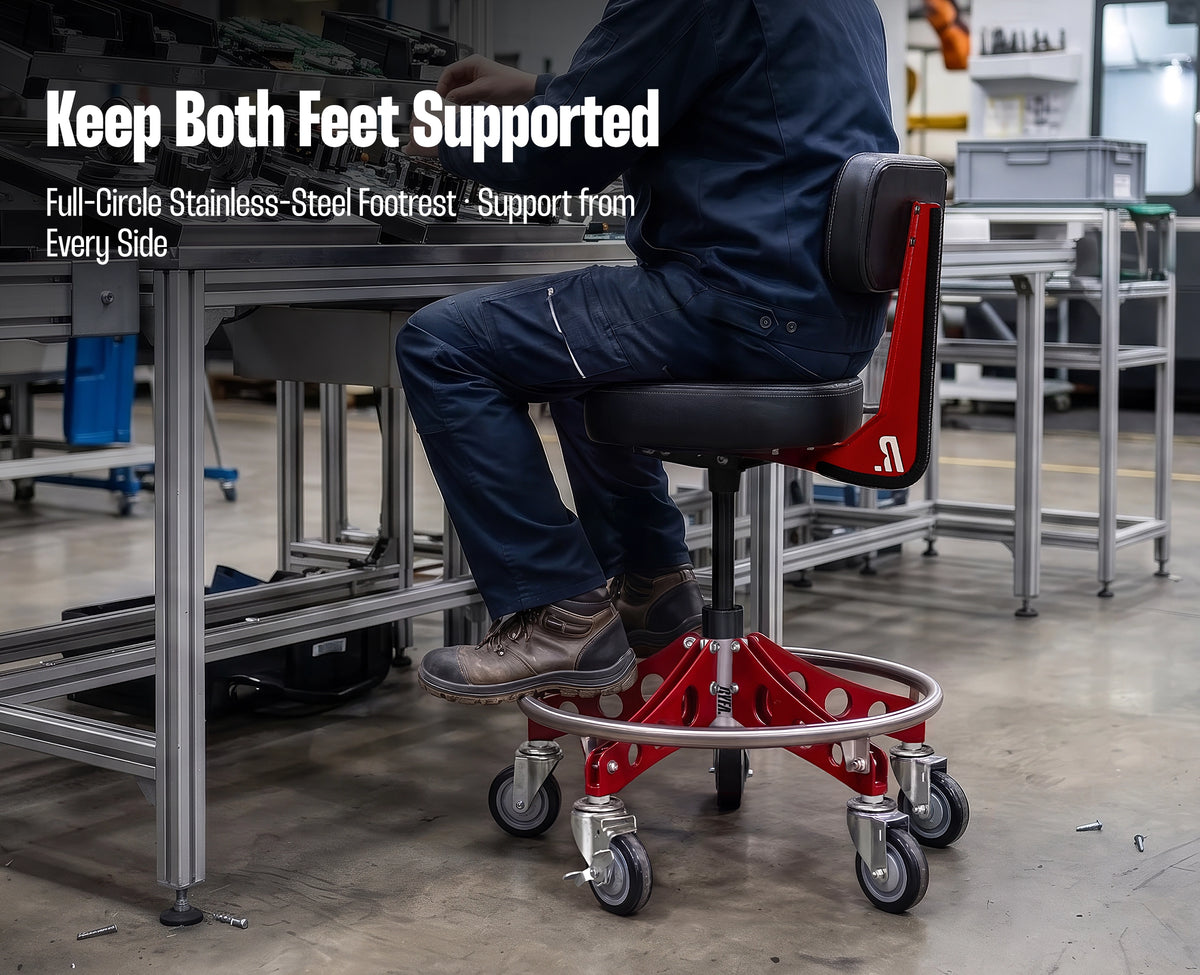

Keep both feet supported
When the floor is out of comfortable reach, the full-circle stainless-steel footrest gives both feet a place to rest. Because the ring wraps around the base, foot support is available from every side of the stool.

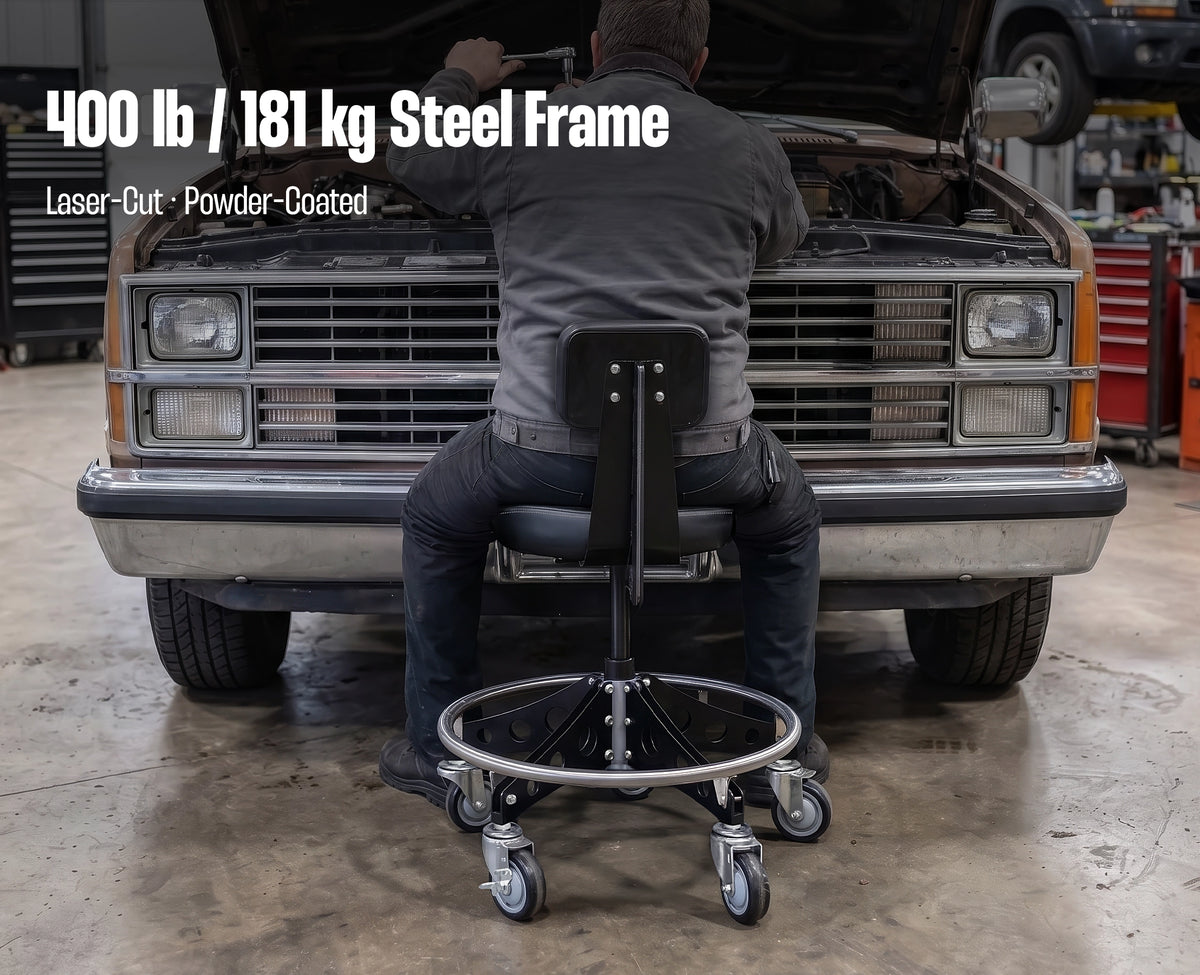

400 lb laser-cut steel frame
The laser-cut steel frame is rated to support 400 lb (181 kg) and carries the load through the gas-lift column and five steel legs. Its powder-coated finish is suited to everyday garage, workshop, and DIY use.

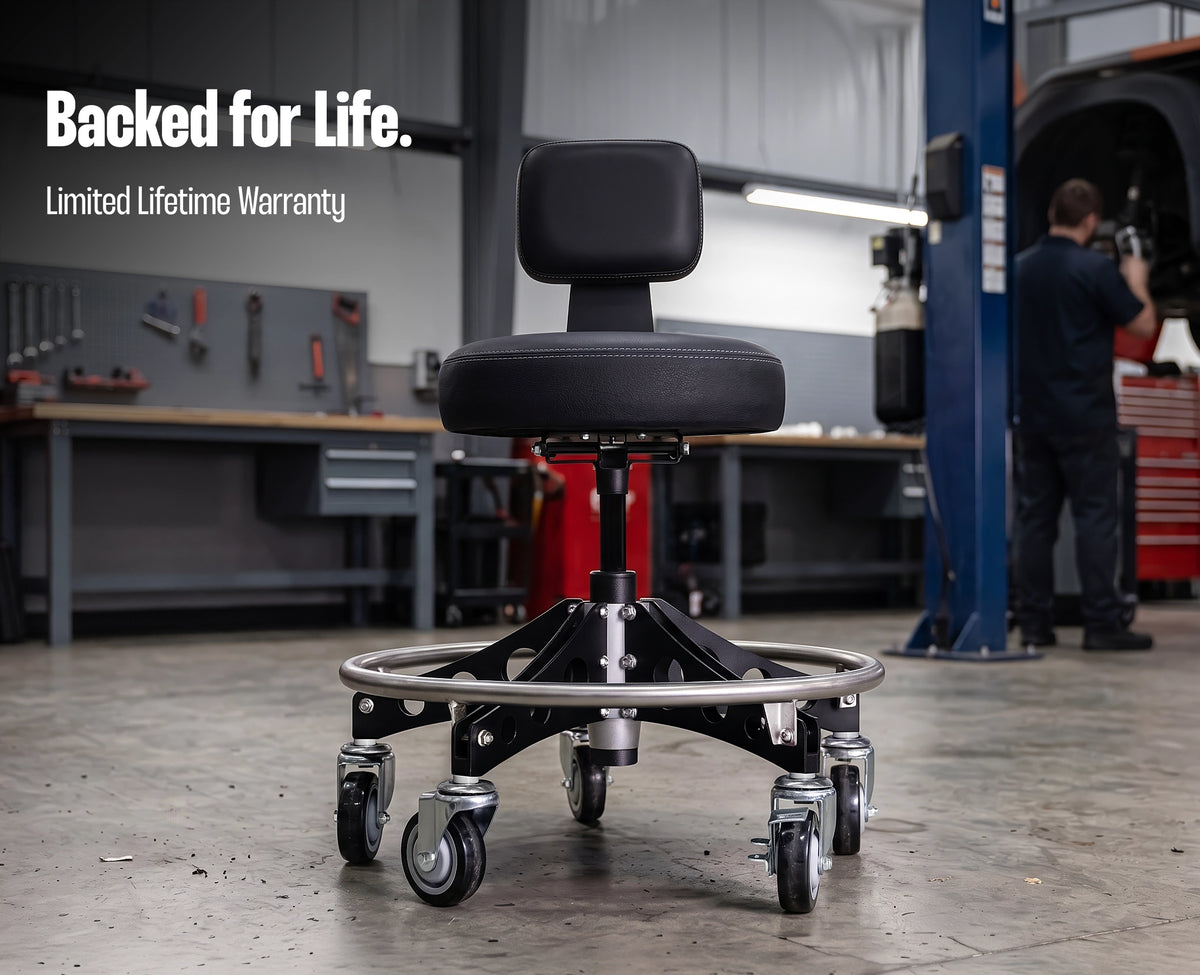

Limited lifetime warranty
Backed by a Limited Lifetime Warranty against manufacturing defects — material flaws, weld failures, and structural failures under normal use. Wear items and normal wear caused by use, exposure to weather, or the passage of time are not covered.
SPECS & DIMENSIONS
01
Tech Specs
- Product Type
- Adjustable Rolling Shop Stool
- Construction
- Laser-cut steel frame
- Finish
- Powder-coated steel
- Height Range
- 17-22.5 "
- Height Adjustment Type
- Pneumatic gas-lift cylinder
- Max Weight Capacity
- 400 lb / 181 kg
- Backrest
- Included · 8 × 6 "
- Seat Diameter
- 14 "
- Seat Thickness
- 4 "
- Base Diameter
- 23 "
- Footrest
- Full-circle stainless-steel ring
- Caster Size
- 4 "
- Number of Casters
- 5 · 2 locking
- Upholstery
- Cushioned seat and backrest · Easy-clean vinyl
- Color Options
- Black · Blue · Red
- Product Weight
- 15.5 kg / 34.2 lb
- Gross Packaged Weight
- 20 kg / 44.1 lb
- Carton Size
- 76 × 67 × 26 cm
- Volumetric Weight
- 26.5 kg / 58.4 lb
02
In the Box
Components
- Seat cushion × 1
- Backrest × 1
- Backrest cushion × 1
- Backrest cushion mounting plate × 1
- Lift kit × 1
- Center hub × 1
- Stainless-steel footrest ring × 1
- Support legs with wheel mounting bolt and nut × 5
- Locking 4″ caster wheels × 2
- Non-locking 4″ caster wheels × 3
fasteners
- M8 × 40 mm stainless-steel button-head bolts × 5
- M8 stainless-steel flange nuts × 5
- 8 × 16 × 2 mm washers × 5
- M8 × 30 mm stainless-steel button-head bolts × 15
- M8 stainless-steel flange nuts × 15
- M6 × 25 mm stainless-steel flange bolts × 10
assembly Tools
- 5 mm L-type Allen key
- 10 mm spanner
- 13 mm spanner
- 19 mm spanner
